Koso D2 multifunction meter suitable for HD® 2014-2017 Dyna, Softail, 883

Koso D2 multifunction meter suitable for HD® 2014-2017 Dyna, Softail, 883

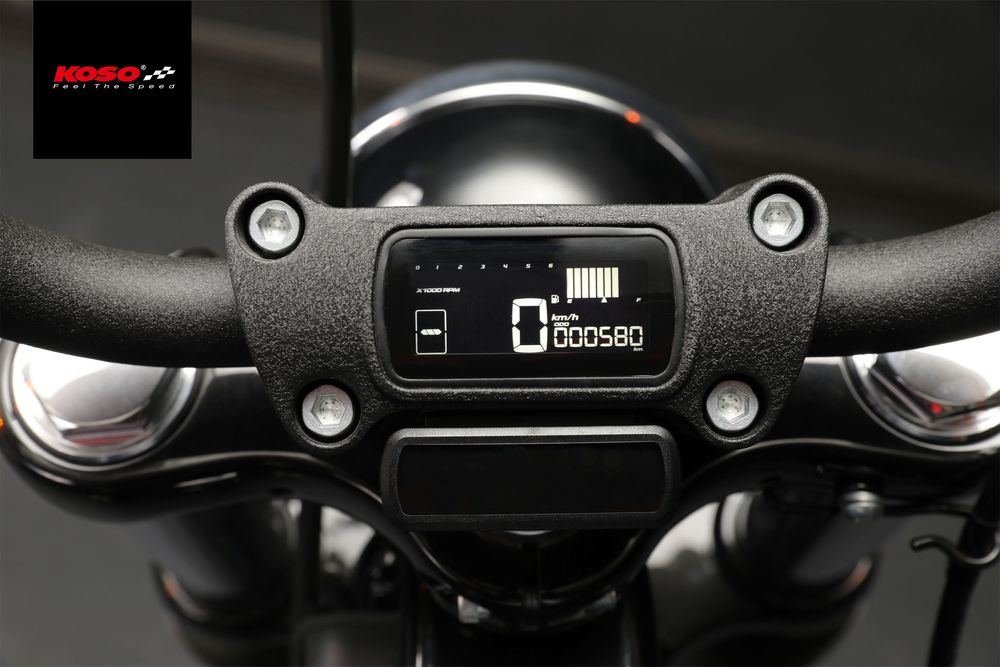

You can now customize your Street Bob with our new high quality 100% Plug & Play meter, equipped with an 8 color changeable LCD display. This gauge features a tachometer and speedometer combination with a programmable shift light and includes a gear indicator to easily see what gear you are in.

The display also includes important metrics such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor your motorcycle's vital signs. This gauge fits directly into the stock wiring harness and works directly with your motorcycle CANBUS system.

*registered trademark of HD Corporation

Specifications
(R=Range U=Unit)
Speedometer
R: 0~199 km (0~124 mile) switchable
U: 1 km (mile)
Display interval
<0.5 seconds

Internal and external odometer
R: 000,000 ~ 999,999 km (mile) returns to zero when exceeded
U: 0.1 km (mile)
Trip odometer A,B
R: 0.000.0 ~ 9.999.9 km (mile) returns to zero when exceeded
U: 0.1 km (mile)
Tire circumference
R: 50~210%
U: 1%
Tachometer
R: 0 ~ 10,000 RPM

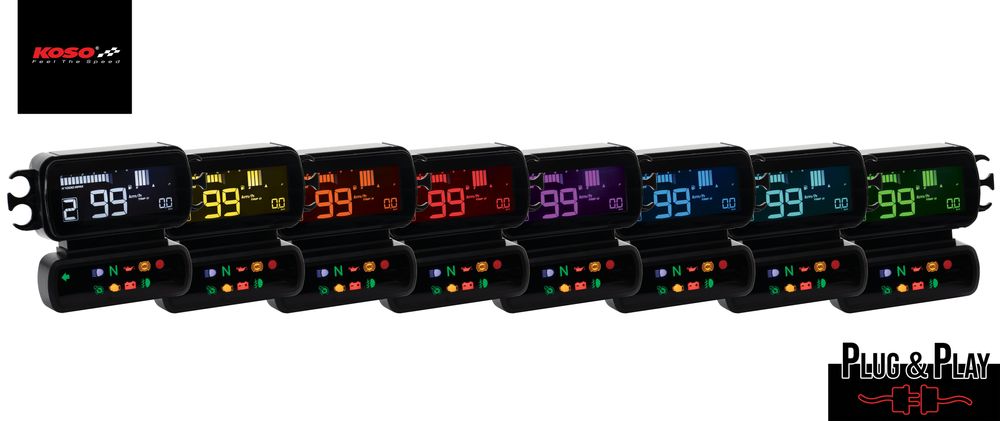

Backlight color
R: white, red, orange, yellow, blue, light blue, purple, green
Mileage maintenance
R: Off, 500 ~ 16,000 km (300 ~ 10,000 mile)
U: 100 km (miles)
Indicator light
R: Right Indicator Light (Green) Security Light (Red) ABS Light (Amber) Engine Oil Light (Red) Idle Light (Green) High Beam Light (Blue) Low Fuel Warning Light (Amber) Left Indicator Light (Green) Fog Light (Green) Battery Discharge Light (Red) Engine Light (Amber) Cruise Control Light (Green/Amber) Tire Pressure Warning Light (Amber)
Shift light warning
R: 2,000 ~ 10,000 RPM
If it is higher than the setting value (inclusive),
The backlight flashes in red and white as a warning
U: 100 REVOLUTIONS PER MINUTE
Engine temperature
R: -38 ~ 572°F (-39 ~ 300°C)
Clock
R: 12/24 hour format
Tension meter
R: 8~18V
Backlight brightness
R: 1/5 (darkest) ~ 5/5 (lightest)
Weight of the measuring device
About 70g
Tire pressure
(TPMS, FR/RR/LR is displayed if the vehicle supports TPMS)
R:-, HI, 0~73 PSI, 0~506 kPa, 0.0~5.0 bar
U: 1 PSI, 1 kPa, 0.1 bar
Fuel gauge
R: 10 steps
Operating voltage
DC 12V
operating temperatur
-20~85°C
Storage temperature
-30~90°C
Specifications
JIS D 0203 (S2)
Size of the measuring device
88.2 x 67.0 x 35.2mm

*Registered trademark of Harley-Davidson Corporation
