DL-04HD Multifunction Display for Harley-Davidson® Dyna 04-11/Softail/883/1200 04-13

Regular price
€459,00
Regular price
Sale price
€459,00
Tax included. Plus shipping. Shipping calculated at checkout.

Vendor : Koso Europe

Product Type :

Sku : BA077400

Lieferzeit 5-8 Tage*

*gilt für Lieferungen innerhalb Deutschlands, Lieferzeiten für andere Länder entnehmen Sie bitte der Schaltfläche "Zahlung und Versand"

Available documents:
Fitment chart
Betriebserlaubnis ABE

DL-04HD Multifunction Display for Harley-Davidson®

The DL-04HD multifunction display combines classic design with modern technology and is specially designed for Harley-Davidson® models:

  • Dyna: 2004–2011

  • Softail: from 2011

  • Sportster XL-883 & XL-1200: 2004-2013

The display is compatible with the original handlebar controls and offers a clear, uncluttered presentation of all relevant driving data on a negative LCD screen.

Features and properties

  • Speedometer: 0–225 MPH (0–360 km/h), switchable

  • Odometer: Total up to 99,999 miles (km)

  • Trip odometer & trip meter (O & A): each up to 9,999.9 miles (km)

  • Oil change and service interval: individually adjustable with warning function

  • Maximum speed warning: 30–360 km/h

  • Gear indicator: N, 1–6

  • Tachometer: up to 15,000 rpm with adjustable warning light

  • Temperature display: 0–250 °C with warning function

  • Voltmeter: 8.0–18.0 V with undervoltage warning

  • Operating hours counter & service hours counter

  • Storage of maximum values: speed, RPM, temperature, voltage, gear

  • Time: 12h/24h format

  • Adjustable backlight: 15–55

Integrated warning and indicator lights

  • Turn signal (green)

  • Engine warning light (yellow)

  • High beam (blue)

  • Neutral (green)

  • Warning light (red)

  • ABS (yellow)

  • tachometer flash (red)

Technical data

  • Operating voltage: DC 12V

  • Temperature range: -10 °C to +60 °C

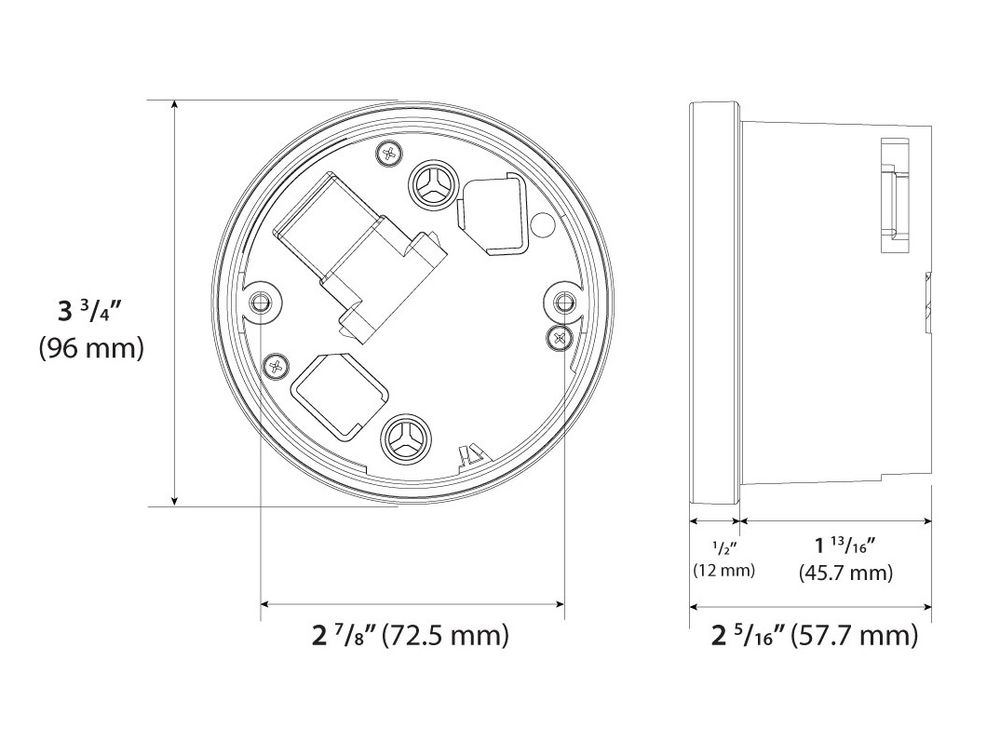

  • Dimensions: Ø 96 mm

  • Weight: approx. 194.5 g

  • Standard: JIS D 0203 (S2)

The DL-04HD multifunction display combines classic looks with comprehensive functions and ensures maximum overview while driving.

Produkt Details - Anbauanleitung - Hersteller

Avaliable download - verfügbare Dokumente
Allgemeine Betriebserlaubnis
Dokumentation – Anleitung
Anleitung Englisch
Anleitung Deutsch
Hersteller / EU verantwortliche Person
EU-Verantwortlicher Name: Koso Europe GmbH & CO KG
EU-Verantwortliche Strasse: Dr.-Walter-Bruch-Strasse
EU-Verantwortlicher Haus Nummer: 9
EU-Verantwortlicher PLZ: 66606
EU-Verantwortlicher ORT: ST. WENDEL
EU-Verantwortlicher Land: DE
EU-Verantwortlicher Telefon: 0049 6851978720
EU-Verantwortlicher Email: info@kosoeurope.com
