DL-04 meter suitable for BMW® R nineT® 2014-2016 // Black // Plug and Play

DL-04 Multifunction Display for BMW® R nineT® (2014-2016)

Compatibility:

• BMW® R nineT® (2014-2016)

• Black

• Plug and play: Easy installation without any adjustments

Main functions and features:

Speedometer:

• Range: 0 ~ 225 MPH (0 ~ 360 km/h), switchable

• Unit: 1 MPH or km/h

Odometer:

• Total: 0 ~ 99,999 miles (km)

• Unit: 1 mile (km)

Trip odometer:

• Range: 0 ~ 9,999.9 miles (km)

• Unit: 0.1 miles (km)

Tripmeter (O and A):

• Tripmeter O (oil change): 0 ~ 9,999.9 miles (km), Unit: 0.1 miles (km)

• Tripmeter A (Service): 0 ~ 9,999.9 miles (km), Unit: 0.1 miles (km)

Oil change interval:

• Range: 300 ~ 10,000 miles (3,000 ~ 16,000 km)

• Unit: 100 miles (km)

• Automatic reduction of the interval

• Warning: Text will turn red when 0 miles (km) or less are reached.

Maximum speed warning:

• Range: 18 ~ 225 MPH (30 ~ 360 km/h)

• Unit: 1 MPH or km/h

Gear indicator:

• Display: N, 1 ~ 6

Tachometer:

• Range: 0 ~ 10,000 / 0 ~ 15,000 rpm

Engine speed warning light:

• Range: 5,000 ~ 15,900 rpm

• Unit: 100 rpm

Temperature:

• Temperature range: 32 ~ 482 °F (0 ~ 250 °C)

• Unit: 1°C (1°F)

Temperature warning:

• Temperature range: 140 ~ 482 °F (60 ~ 250 °C)

• Unit: 1°C (1°F)

Voltmeter:

• Range: 8.0 ~ 18.0 V

• Low voltage warning: 8.0 V ~ 12.5 V

• Unit: 0.1 V

Operating hours counter:

• Range: 0.0 ~ 9999.9 hours

• Unit: 0.1 hours (6 minutes)

Hour meter 1 - 2 & low oil level indicator A:

• Range: 0.0 ~ 9999.9 hours

• Unit: 0.1 hours (6 minutes)

Recording of maximum values:

• Top speed

• Maximum speed

• Highest temperature

• Maximum tension

• Highest gear

Clock:

• Format: 12H or 24H

Backlight:

• Adjustable: 15 (darkest) to 55 (brightest)

Warning lights:

• Turn signal (green)

• Engine warning light (yellow)

• High beam (blue)

• Neutral (green)

• Warning light (red)

• ABS (yellow)

• tachometer flash (red)

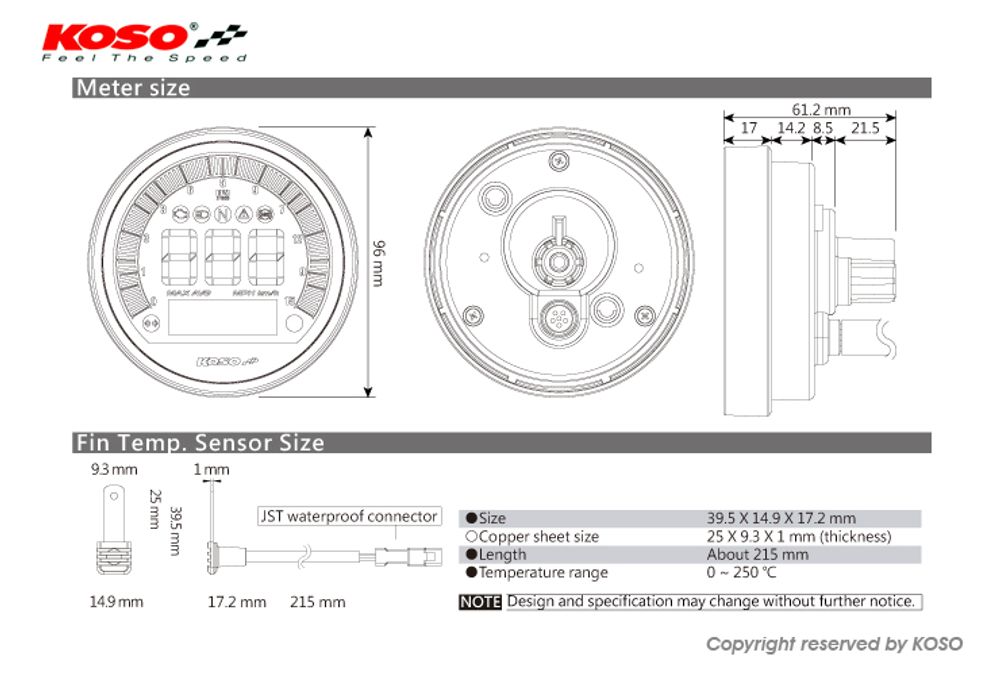

Technical specifications:

• Voltage: DC 12V

• Temperature range: -10 ~ +60 °C

• Size: Ø 96 mm

• Weight: approx. 194.5 g

• Standard: JIS D 0203 (S2)

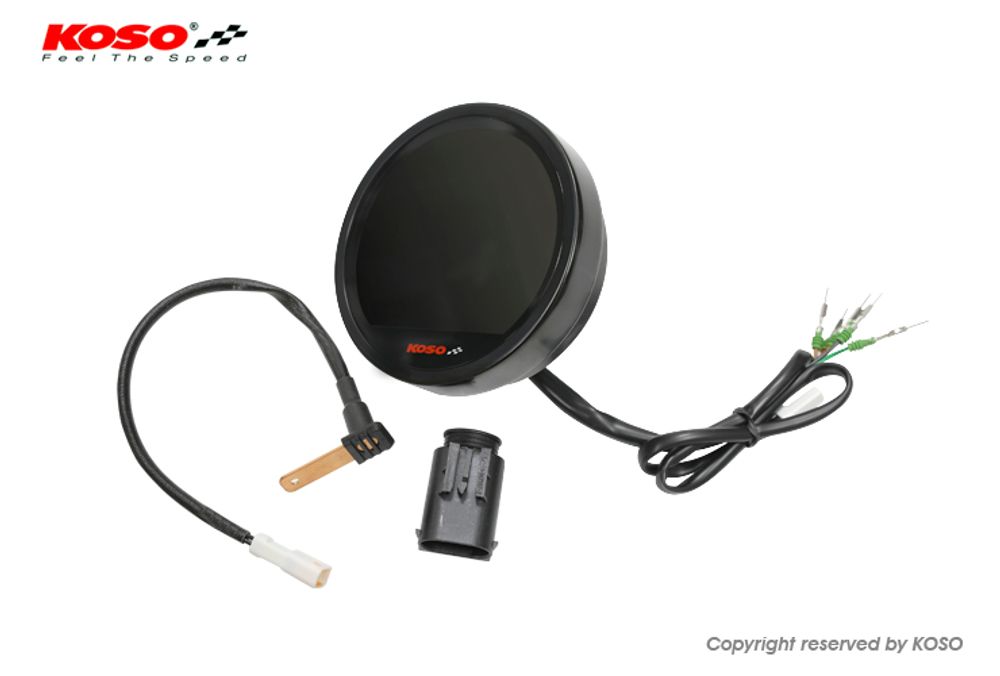

Table of contents:

• LCD measuring device – 1×

• Plug – 1×

• Blind plug – 1×

• Temperature sensor – 1×

( registered trademark of Bayerische Motoren Werke Aktiengesellschaft )
