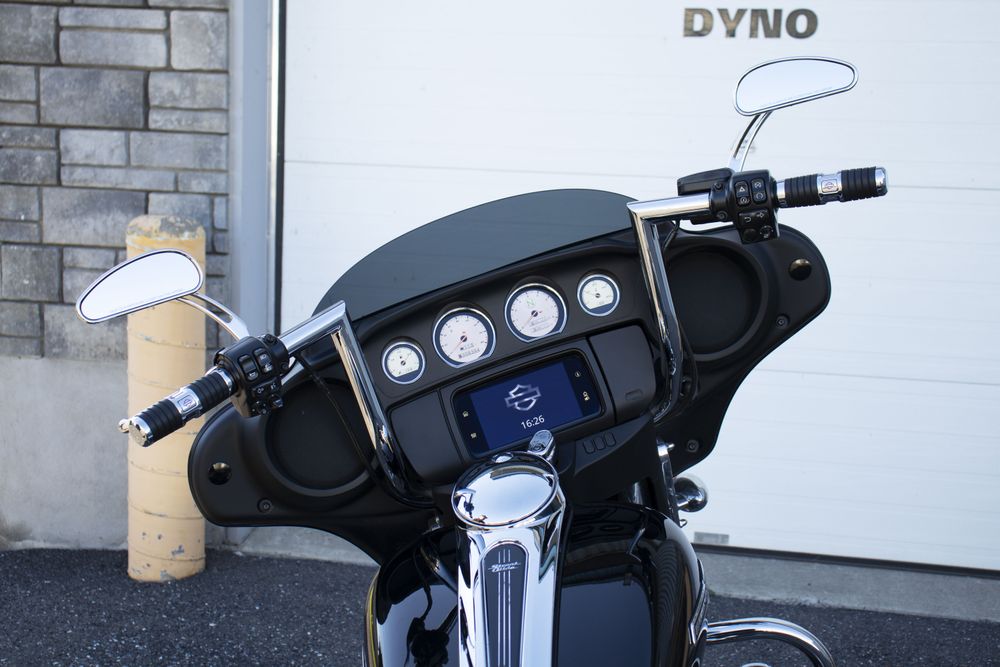

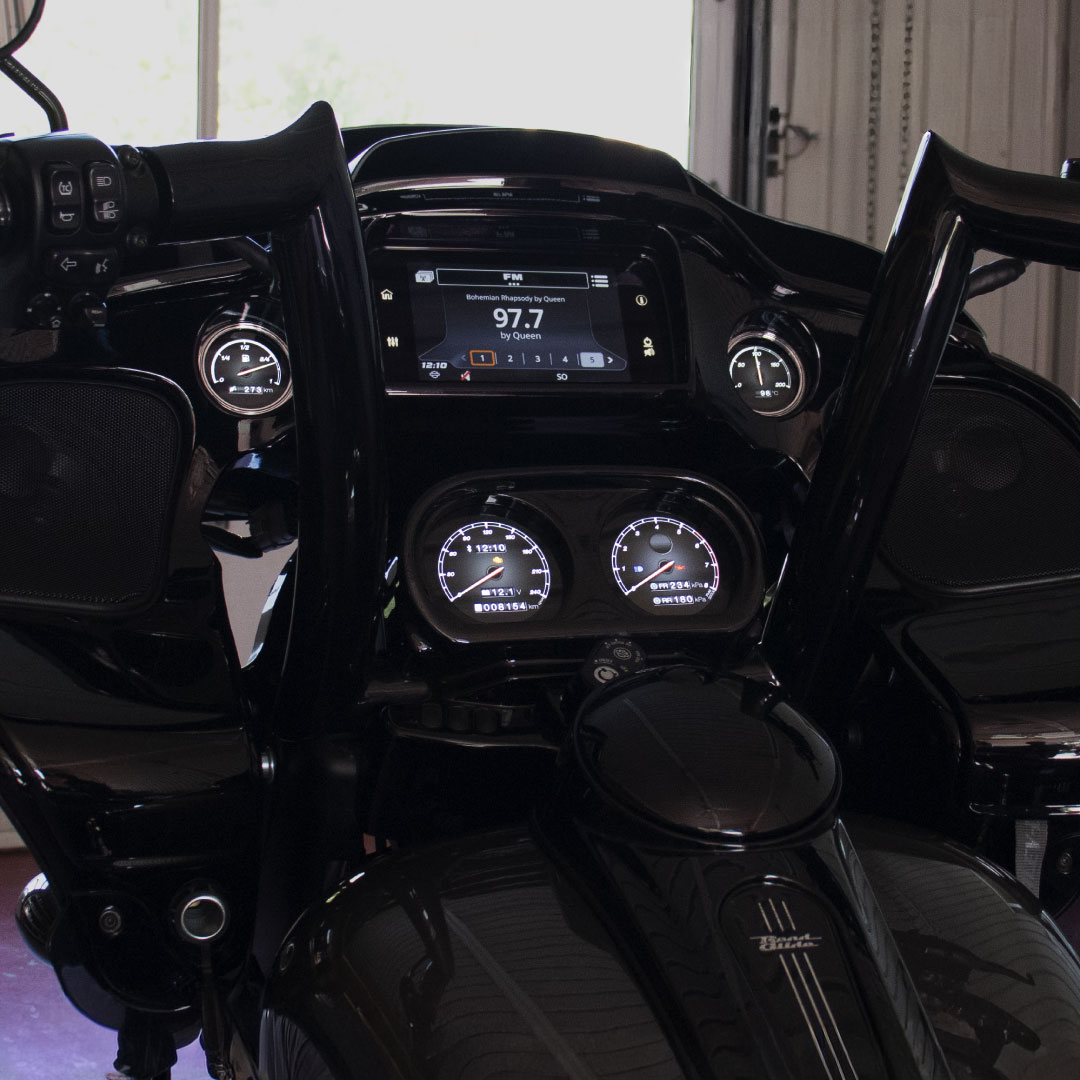

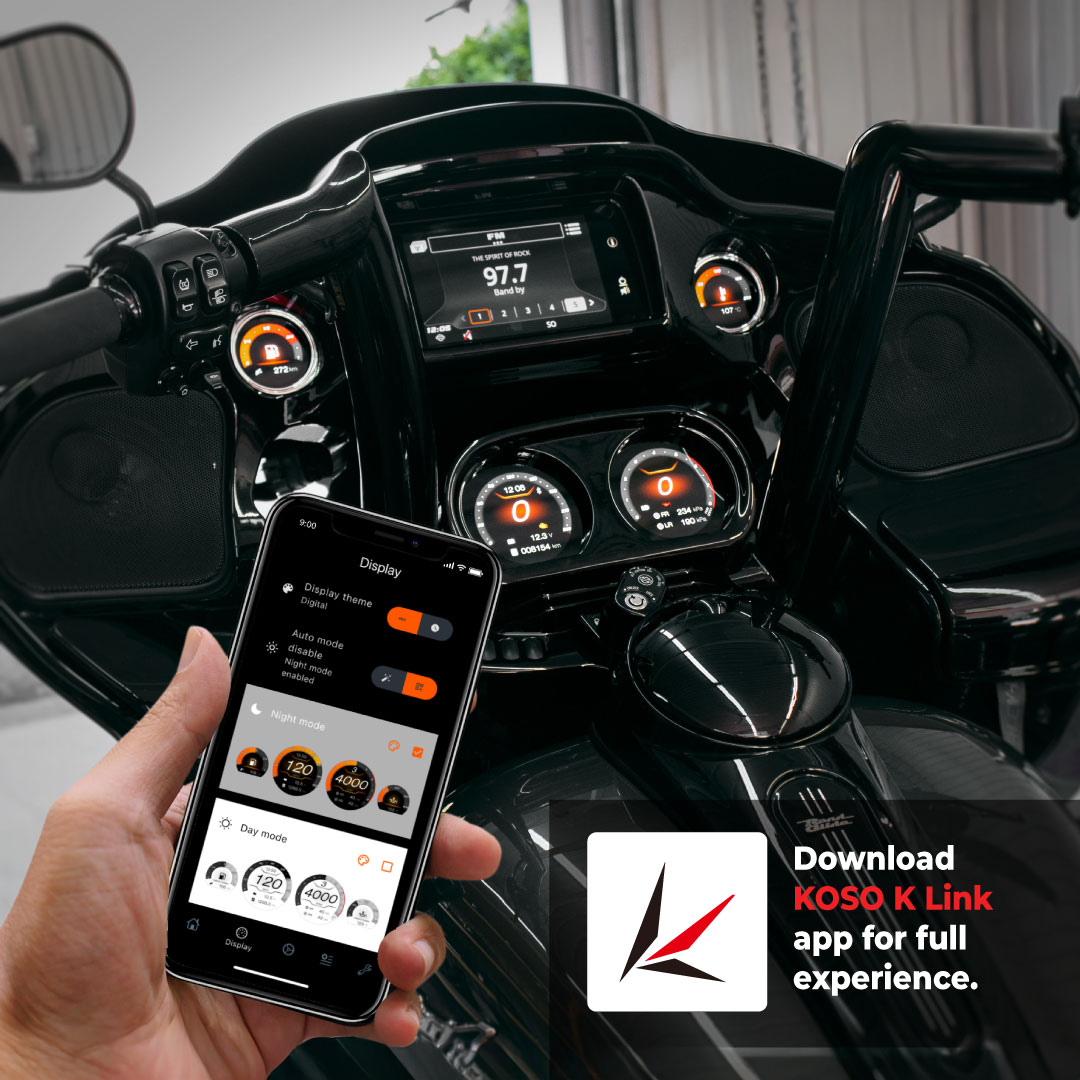

This plug-and-play TFT gauge set for Harley-Davidson Bagger (2014 to 2023) offers smartphone integration, allowing you to control your instrument panel directly from your device. Connect your gauges to your smartphone using the KOSO K Link app and monitor real-time data from your motorcycle: speed, fuel level, oil temperature, gear position, RPM, peak power, horsepower, tire pressure, and more. You can even see your motorcycle's location in the app, so you'll never have to search for it in crowded places again!

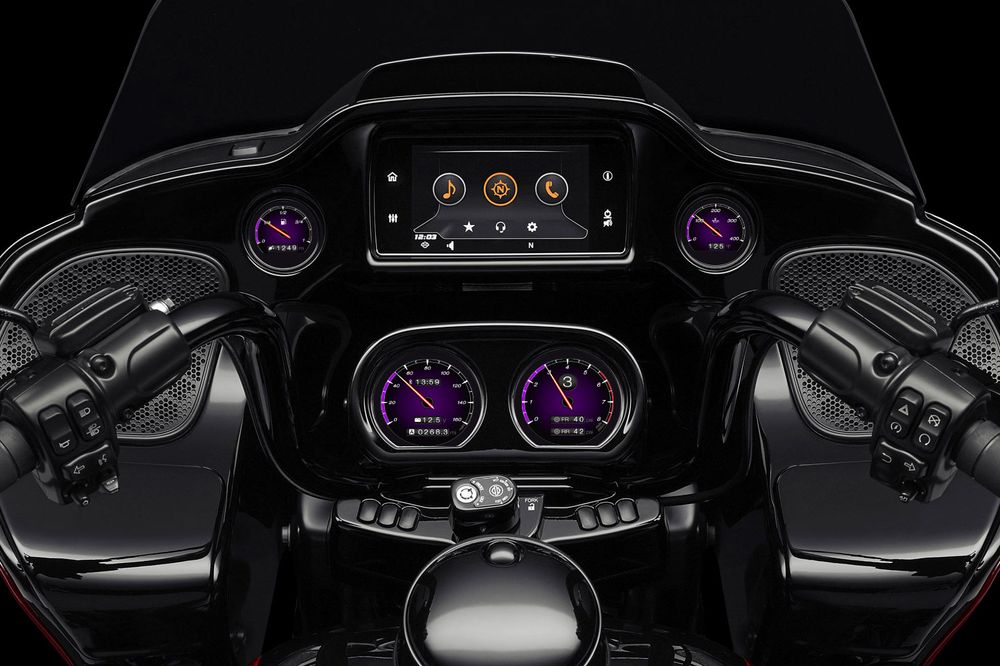

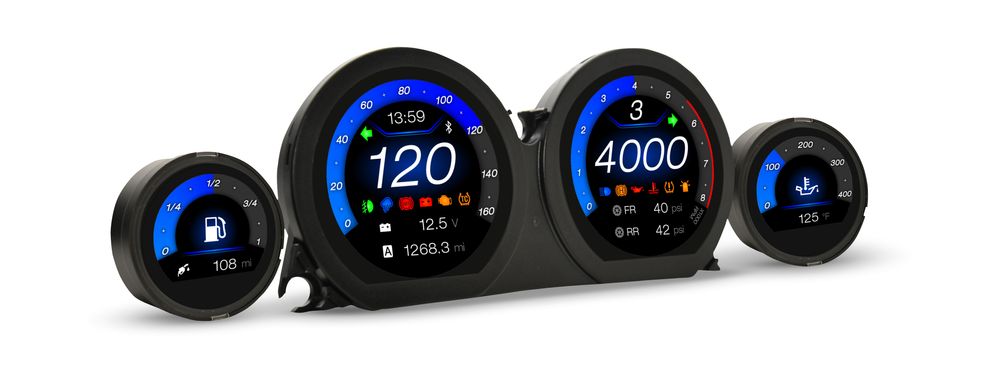

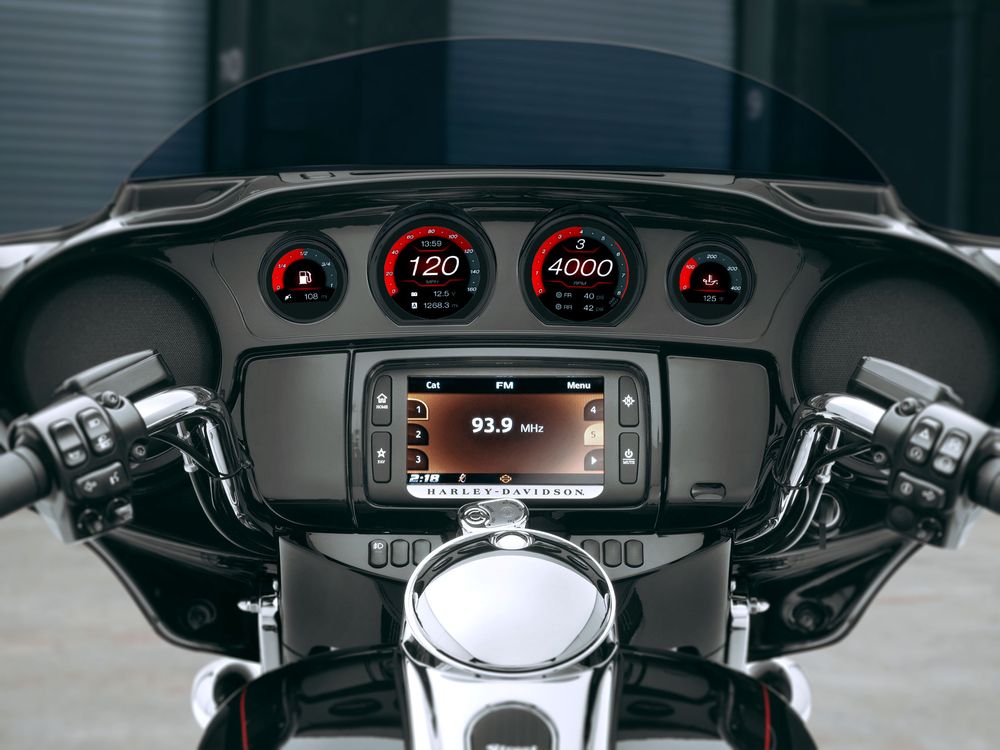

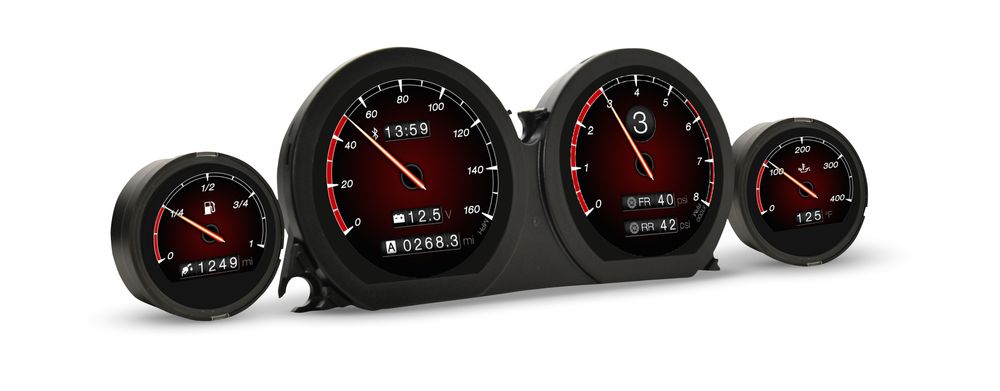

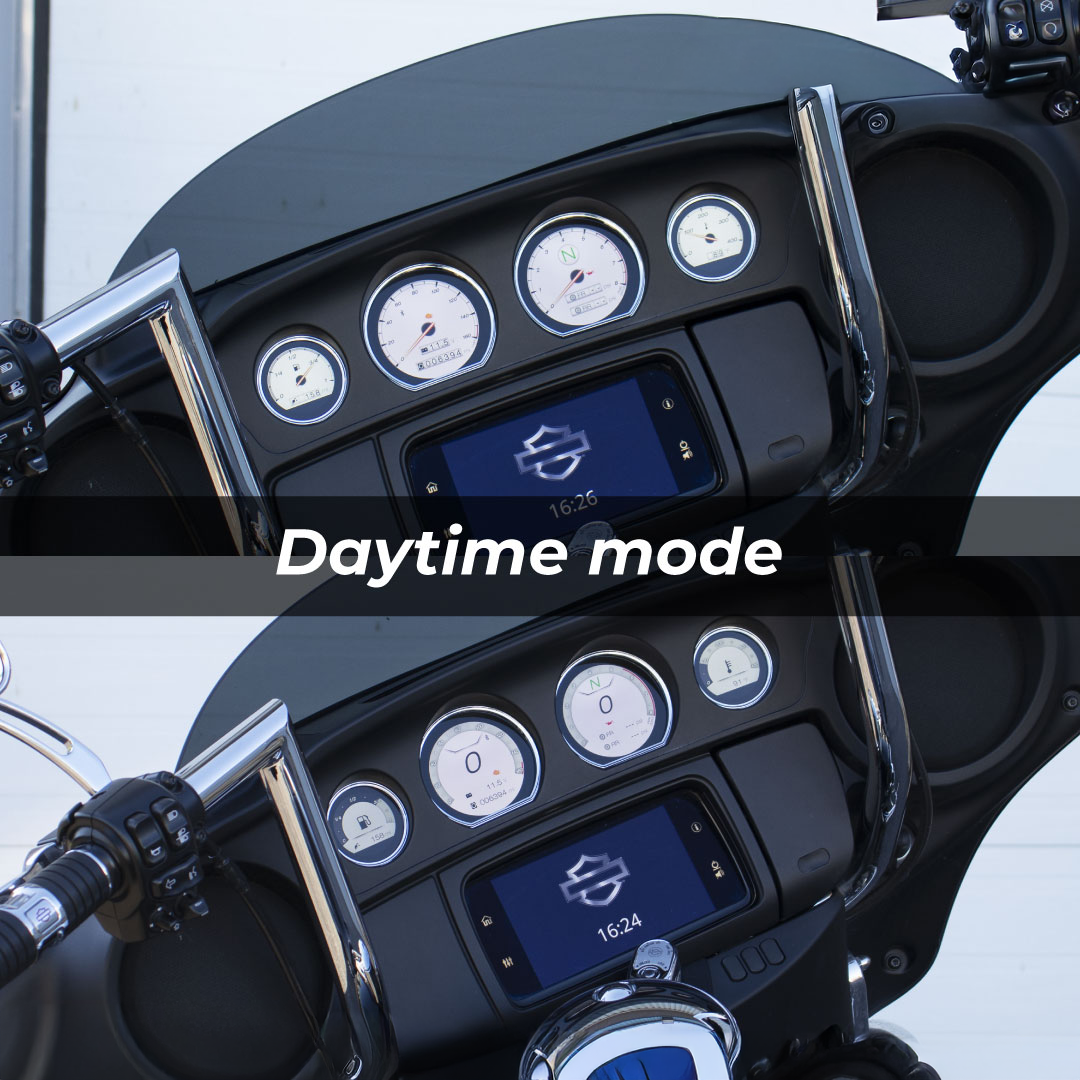

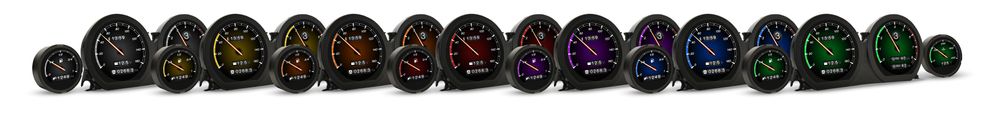

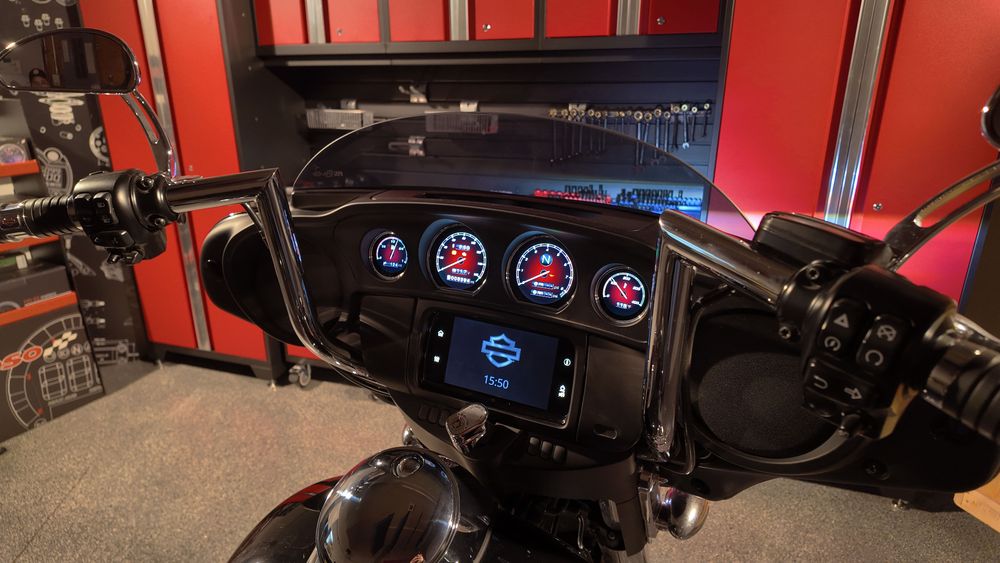

Customize your motorcycle's style by instantly switching between analog and digital interfaces and choosing from seven different backlight colors. This results in up to 14 unique display combinations. The K Link app also lets you check the status and maintenance of your system with its diagnostic function.
Specifications
(R = area, U = unit)
- Tachometer
R: 0 ~ 8,000 rpm | U: 10 rpm - RPM shift light
R: 1,000 – 8,000 rpm
U: 100 rpm - Maximum speed
R: 0 ~ 8,000 rpm | U: 100 rpm - speedometer
R: 0 ~ 199 MPH (0 ~ 299 km/h)
U: 1 MPH or km/h (alternative) - Overspeed warning
R: 20 ~ 199 MPH (30 ~ 299 km/h)
Warning lights on ≥ value - Top speed record
R: 0 ~ 199 MPH (0 ~ 299 km/h) - odometer
R: 0 ~ 999,999 miles (km) | U: 1 mile (km)
- Trip odometer A/B
R: 0 ~ 9,999.9 miles (km) | U: 0.1 mile (km) - Mileage maintenance
R: Off / 300 ~ 10,000 miles
(500 ~ 16,000 km) ~ -999 miles
U: 100 miles (km) - Engine temperature
R: -40 ~ 572°F (-40 ~ 300°C) | -
Fuel warning setting
