Koso HD-02 Set for Harley-Davidson® 2004-2013
The Koso HD-02 Set is specially designed for Harley-Davidson® models FLHT, FLHX, and FLTR from 2004 to 2013. It is the perfect solution for riders who want to upgrade their instruments.
With its Plug & Play design, installation is quick and easy – no drilling or complicated wiring required. Simply connect, insert, and you’re ready to go.

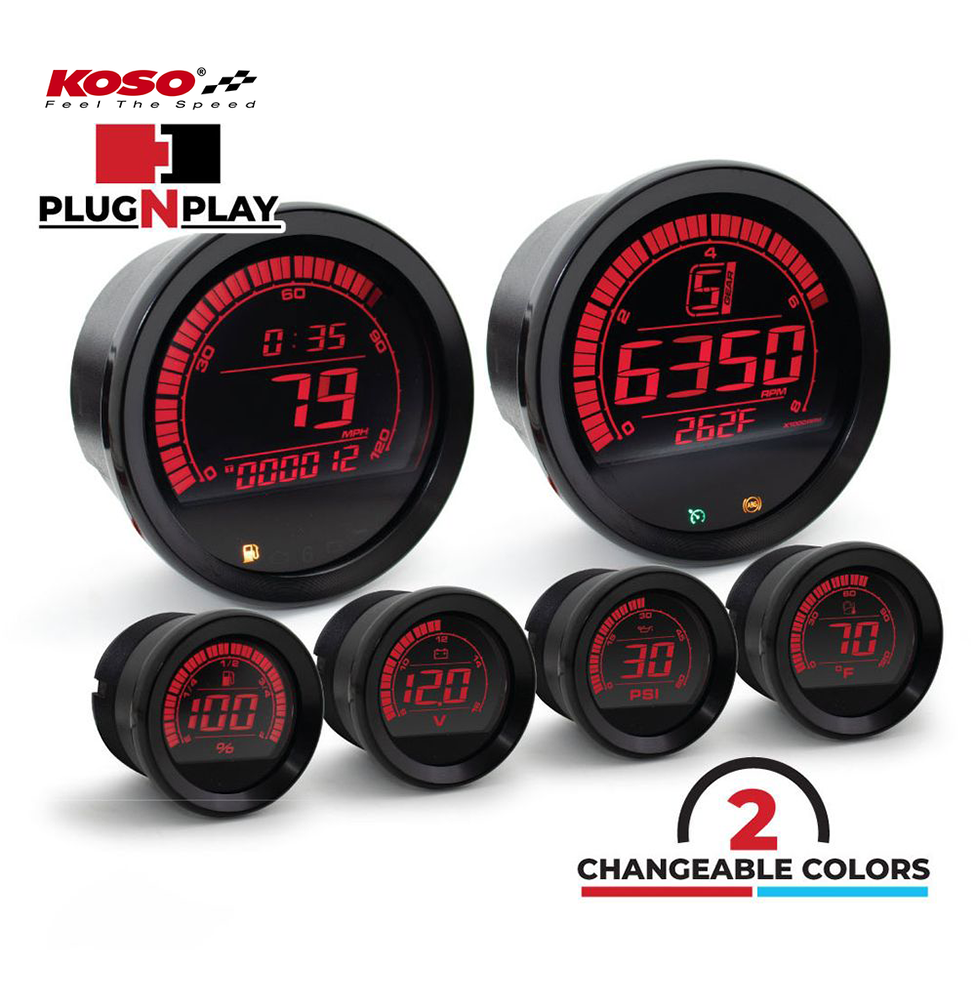

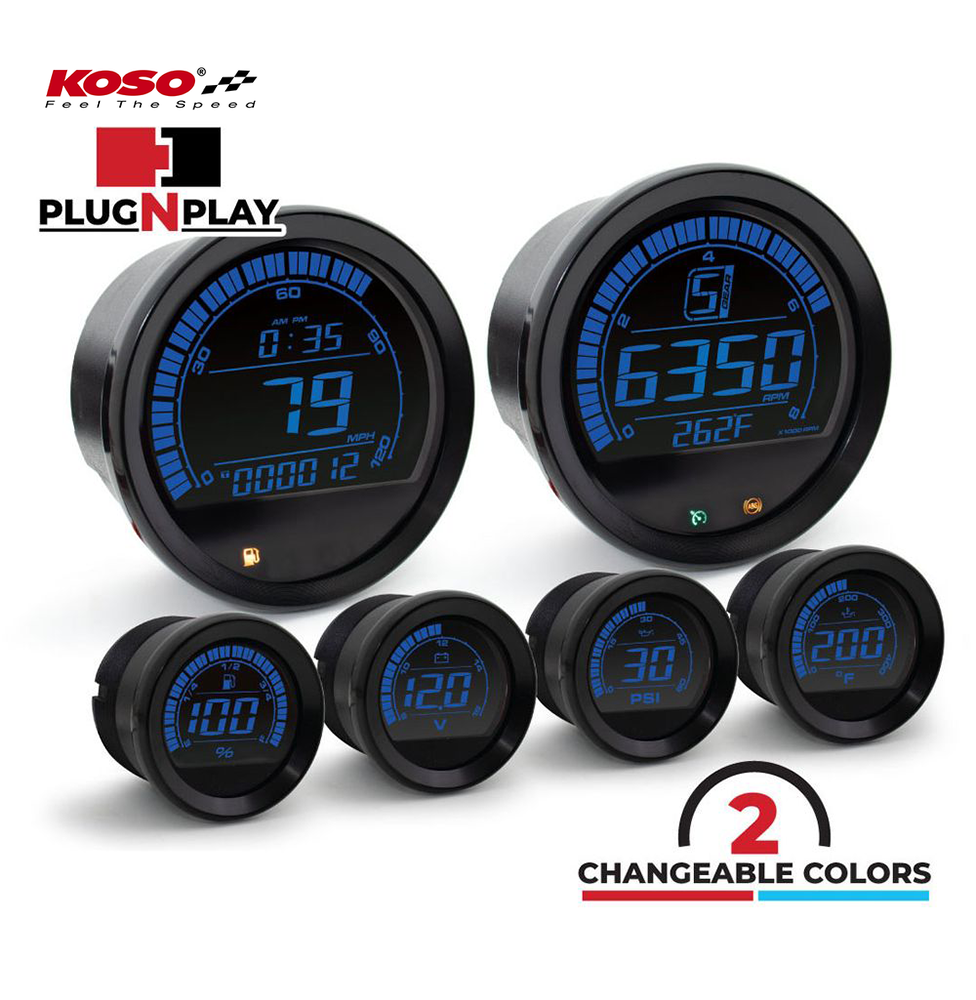

The background lighting can be selected in blue or red. When the ignition is off, the instruments remain black for a sleek, elegant look.
The 6-piece set includes:
-
4" Speedometer
-
4" Tachometer with gear indicator
-
2" Oil temperature gauge
-
2" Outside temperature gauge
-
2" Fuel gauge
-
2" Voltmeter
Specifications
4" Speedometer
-
Measuring range: 0 ~ 360 km/h (0 ~ 225 mph)
-
Unit: 1 km/h (mph)
-
Display band: 0 ~ 200 km/h (0 ~ 120 mph), Accuracy ±4.2 km/h (±2.5 mph)
-
Odometer: 000000 ~ 999999 km (miles), Unit: 1 km (mile)
-
Tripmeter: 0000.0 ~ 9999.9 km (mile), Unit: 0.1 km (mile)
-
Clock: 00:00 ~ 23:59 (24H), Accuracy ±4 sec/day
-
Indicators: Fuel (Yellow), Engine (Yellow), Neutral (Green), Voltage (Red), Immobilizer (Red)
4" Tachometer with Gear Indicator
-
Range: 0 ~ 8000 RPM, Accuracy ±166 RPM
-
Display: N, 1, 2, 3, 4, 5, 6
-
Indicators: Cruise control (Orange/Green), ABS (Yellow)
-
Engine temperature: 0 ~ 255°F (-17 ~ 123°C)
2" Outside Temperature Gauge
-
Measuring range: 0 ~ 120°F
-
Unit: 1°F
-
Standard: JIS D 0203
Warning! Can only display degrees Fahrenheit (°F).
2" Fuel Gauge
-
Range: 0 ~ 100 %
-
Unit: 1 %
-
Voltage: DC 12V
-
Standard: JIS D 0203
2" Oil Temperature Gauge
-
Range: 0 ~ 400°F
-
Unit: 1 °C
-
Alarm: Adjustable 150 ~ 400°F (unit: 1°F or 1°C)
-
Standard: JIS D 0203
2" Voltmeter
-
Range: 8.0 ~ 16.0V
-
Unit: 1V
-
Standard: JIS D 0203
The Koso HD-02 Set is the ideal upgrade for Harley-Davidson® Touring models. Modern functions like the gear indicator, oil and outside temperature gauges, voltmeter, and precise speedometer provide enhanced safety, control, and comfort – all in a sleek, timeless design.
