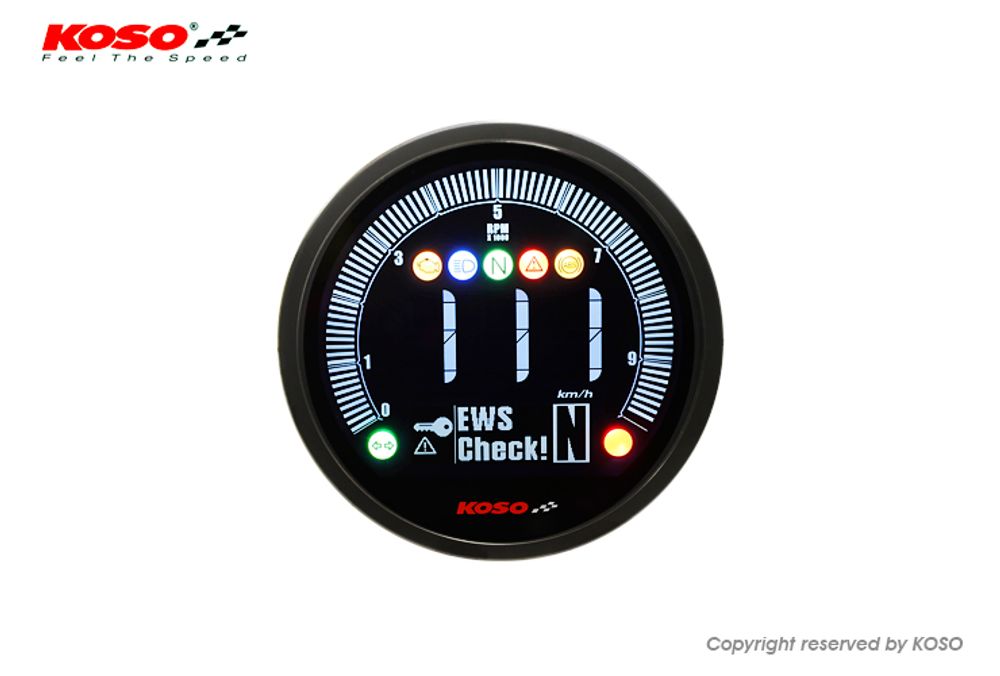

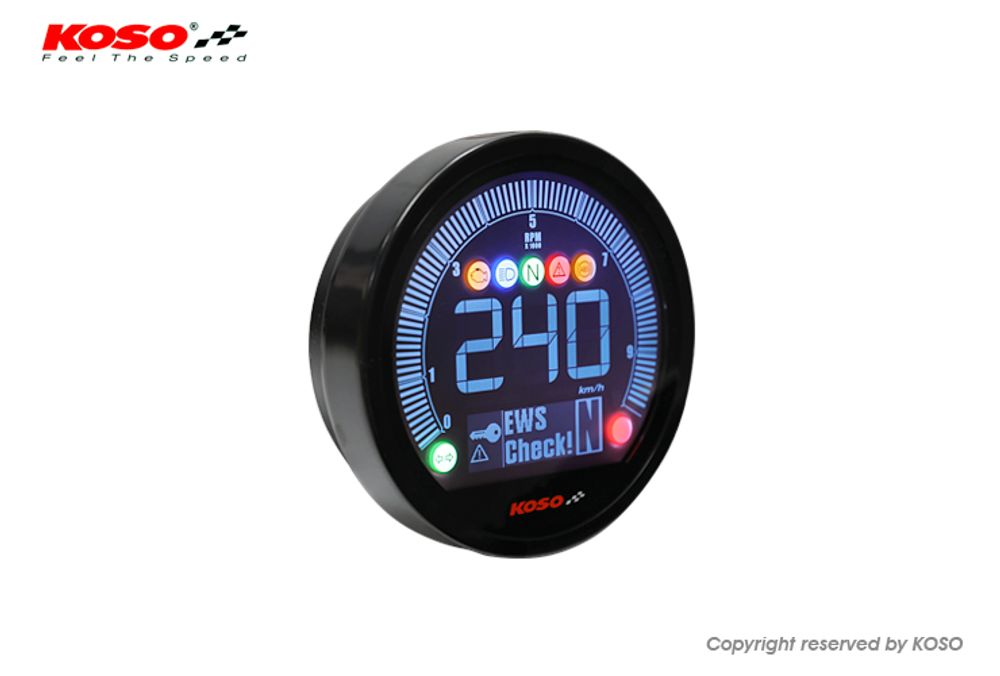

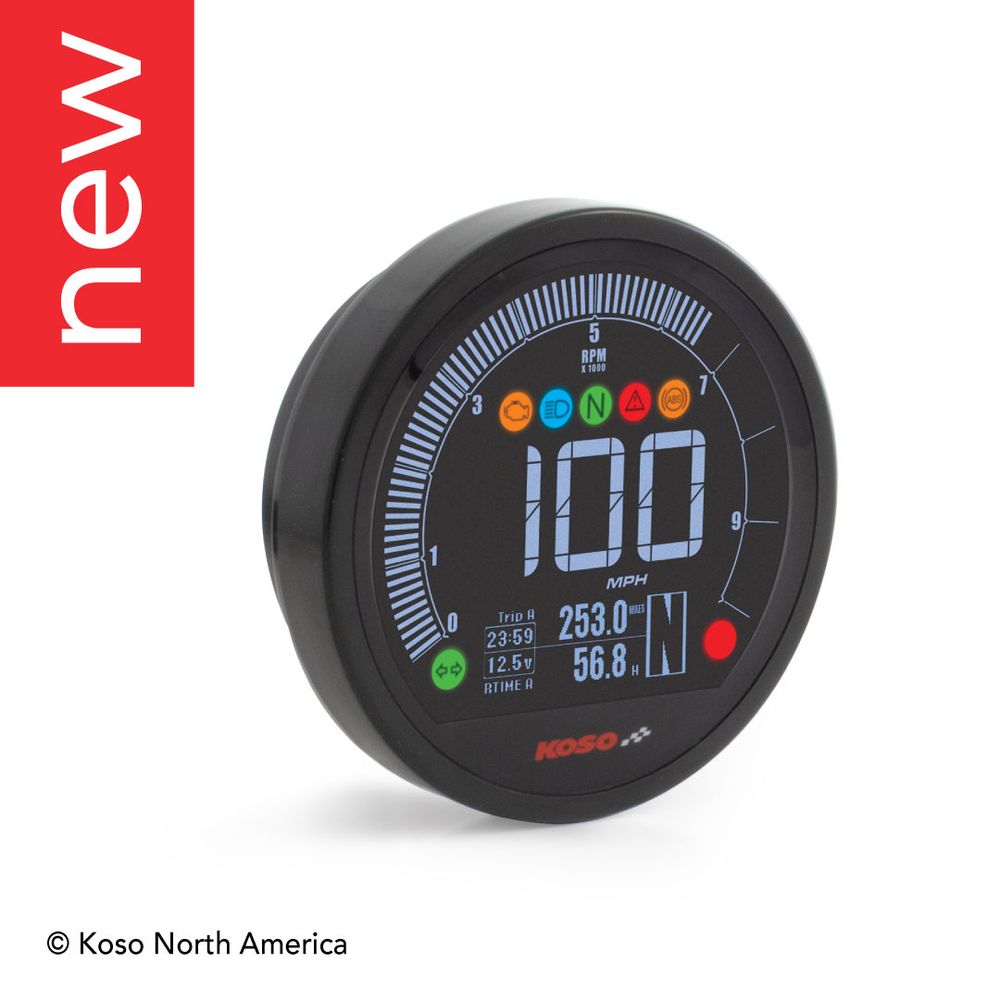

KOSO DL-04 Meter unlimited
Specifications (R = Range / U = Unit)
Speedometer
-
R: 0 ~ 225 MPH (0 ~ 360 km/h), switchable
-
U: 1 MPH or km/h
Odometer
-
R: 0 ~ 99,999 miles (km)
-
U: 1 mile (km)
Tripmeter
-
R: 0 ~ 9,999.9 miles (km)
-
U: 0.1 miles (km)
Tripmeter O (Oil change)
-
R: 0 ~ 9,999.9 miles (km)
-
U: 0.1 miles (km)
Tripmeter A (Service)
-
R: 0 ~ 9,999.9 miles (km)
-
U: 0.1 miles (km)
Oil change interval
-
R: 300 ~ 10,000 miles (3,000 ~ 16,000 km)
-
U: 100 miles (km)
-
Automatic reduction
-
Warning: Text turns red at ≤ 0 miles (km)
High speed warning
-
R: 18 ~ 225 MPH (30 ~ 360 km/h)
-
U: 1 MPH or km/h
Gear indicator
-
R: N, 1 ~ 6
Tachometer
-
R: 0 ~ 10,000 RPM / 0 ~ 15,000 RPM
Shift light
-
R: 5,000 ~ 15,900 RPM
-
U: 100 RPM
Temperature
-
R: 32 ~ 482 °F (0 ~ 250 °C)
-
U: 1°C (1°F)
Temperature warning
-
R: 140 ~ 482 °F (60 ~ 250 °C)
-
U: 1°C (1°F)
Voltmeter
-
R: 8.0 ~ 18.0 V
Low voltage warning
-
R: 8.0 V ~ 12.5 V
-
U: 0.1 V
Hour meter
-
R: 0.0 ~ 9999.9 hours
-
U: 0.1 hours (6 minutes)
Hour counter 1 - 2
-
R: 0.0 ~ 9999.9 hours
-
U: 0.1 hours (6 minutes)
Low oil indicator A
-
R: 0.0 ~ 9999.9 hours
-
U: 0.1 hours (6 minutes)
Recorded maximum values
-
Speed: 0 ~ 360 km/h (0-225 MPH)
-
RPM: 0 ~ 15,000 RPM
-
Temperature: 0 ~ 250 °C (32 ~ 482 °F)
-
Voltage: 8.0 ~ 18 V
-
Gear: N / 1 ~ 6
Clock
-
Format: 12 H or 24 H
Backlight brightness
-
R: 1 ~ 5 (darkest to brightest)
Voltage
-
DC 12V
Temperature range
-
-10 ~ +60 °C
Standard
-
JIS D 0203(S2)

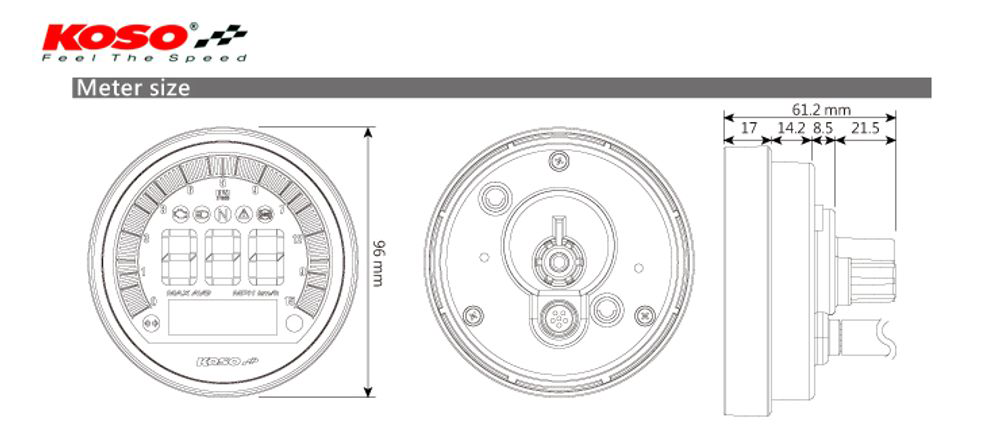

Dimensions
-
Diameter: 96 mm
Weight
-
approx. 194.5 g
Warning lights
-
Turn signal (green)
-
Engine warning (yellow)
-
High beam (blue)
-
Neutral (green)
-
Warning (red)
-
ABS (yellow)
-
Shift light (red)
Contents:
-
LCD meter – 1×
-
Main wiring harness – 1×
-
Active RPM sensor – 1×
-
RPM cable (Type A) – 1×
-
RPM cable set (Type B) – 1×
-
Extension wire – 1×
-
Temperature sensor – 1×
-
External switch (double button type) – 1×
-
Rubber strip – 1×
-
Speed sensor bracket M8 / S-type – 1×
-
Speed sensor bracket M10 / S-type – 1×
-
Hex screw M5 × 5L × P0.8 – 2×
-
2.5 mm hex key – 1×
-
3 mm hex key – 1×
-
Meter bracket – 1×
-
Screw M5 × 12L – 3×
-
Washer M5 – 3×
-
Allen screw M6 × 35L – 2×
-
Allen screw M8 × 30L – 2×
-
Bushing M6 – 2×
-
Bushing M8 – 2×
